   Valves / Globe Valves

ASA Class 150/300 ASA Class 400/600 Din Std. ND-16 / ND-40

ASA Class 400/600



Primary service reating & test pressure
Class
Working press.
Temp.
HYD. Test pressure
Body
Seat
400
150 PSIG
800 ° F
1425 PSIG
1060 PSIG
600
300 PSIG
800 ° F
2175 PSIG
1600 PSIG
AIR TEST-SEAT 80 +_10 PSIG

Technical Data
Manufacturing STD: BS 1873
Testing & Inspection STD:
 API 598/ BS 5146
Face to Face: ANSI B 16.10
End connections: Flanged as per ANSI B 16.5
Shell wall thickness: ANSI B 16.34
�

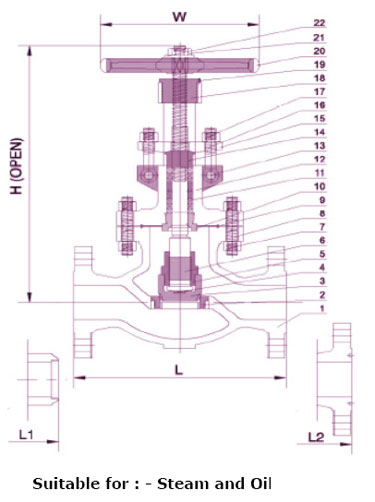

No. Description Material
Qty.
01 Body ASTM A 216 Gr. wcb
1
02 Bonnet ASTM A 216 Gr. wcb
1
03 Seat ring AISI 410 ( 13% CR.)
1
04 Disc AISI 410 ( 13% CR.)
1
05 Stem AISI 410 ( 13% CR.)
1
06 Stem Nut AISI 410 (13%CR)
1
07 Bonnet Bush AISI 410
1
08 Gland CARBON STEEL
1
09 Gland packing METALIC WIRE REINFORCED
GRAPHITED ASBESTOS / GRAFOIL
-
10 Yoke Sleeve NI-RESIST
1
11 Bonnet Gasket COMPRESSED ASBESTOS FIBRE/ SOFT STEEL
1
12 Bonnet Stud & Nut ASTM A 193 GR.B7
ASTM A 194 GR.2H
-
13 Eye Bolt & Nut ASTM A 193 GR.B7
ASTM A 194 GR.2H
2 Set
14 Hand Wheel CAST IRON
1
15 Hand Wheel Nut CARBON STEEL
1

Class - 150
Size
A
B
ø C
ø D
ø M
N
PCD
J
25
215
23.9
51
124
19
4
89.0
250
40
242
28.7
73
156
22
4
114.5
250
50
293
31.7
92
165
19
8
127.5
305
65
331
34.8
105
191
22
8
149.0
305
80
357
38.8
127
210
22
8
168.0
405
100
407
41.4
157
254
25
8
200.0
405
125
458
44.5
186
279
25
8
235.0
490
150
496
47.5
216
318
25
12
270.0
490
200
598
54.1
270
381
381
12
330.0
610
250
677
60.2
324
445
445
16
387.0
672
300
763
63.5
381
521
521
16
451.0
825

Class - 300
Size
A
B
ø C
ø D
ø M
N
PCD
J
25
214
23.9
51
124
19
4
89
210
40
242
28.7
73
156
22
4
114
250
50
293
31.7
92
165
19
8
127
250
65
331
34.8
105
191
22
8
149
405
80
357
38.1
127
210
22
8
168
405
100
 433
44.5
157
273
25
8
216
490
125
509
 50.8
186
330
29
8
267
490
150
560
 54.1
216
356
29
12
292
610
200
661
 62.0
270
419
32
12
349
675
250
788
 69.8
324
508
35
16
432
825
300
839
 72.9
381
559
35
20
489
825
all dimesion are in mm

Note : Due to constant upgradation designs & dimensions are subject to change wihtout notice.
