   Valves / Globe Valves

ASA Class 150/300 ASA Class 400/600 Din Std. ND-16 / ND-40

Din Std. ND-16 / ND-40



Hydraulic Test Pressure
Std.
Body
Seat
Air
ND 16
32 kg. /cm2
464 PSIG
16 kg. /cm2
232 PSIG
6 kg. /cm2
80 PSIG
ND 40
80 kg. /cm2
1160 PSIG
40 kg. /cm2
580 PSIG
6 kg. /cm2
80 PSIG

Primary Service Rating & Test Pressure
ND 16
16 kg / cm2
220° C
Nd 40
40 kg / cm2
400° C

Technical Data
Manufacturing STD: BS 1873
Testing & Inspection STD:
 API 598
Face to Face: As per Din ND -16/ND -40
End connections: Flanged as per Din
2533/2543/2535/2545
Shell wall thickness: ANSI B 16.34
�

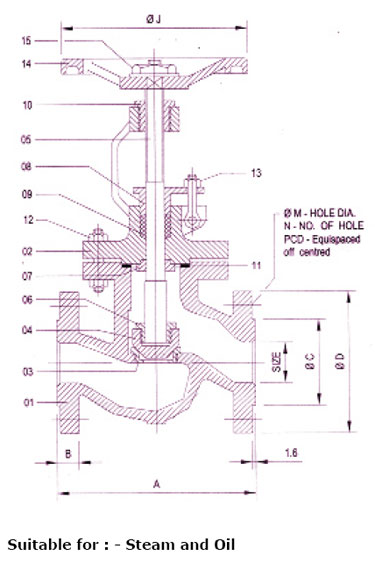

No. Description Material
Qty.
01 Body ASTM A 216 Gr.
WCB / CAST IRON
1
02 Bonnet ASTM A 216 Gr.
WCB / CAST IRON
1
03 Seat ring AISI 410 (13% CR)
1
04 Disc AISI 410 (13% CR)
1
05 Stem AISI 410 (13% CR)
1
06 Stem Nut AISI 410 (13% CR)
1
07 Bonnet Bush AISI 410
1
08 Gland CARBON STEEL
1
09 Gland packing METALIC WIRE REINFORCED
GRAPHITED ASBESTOS
-
10 Yoke Sleeve NI-RESIST
1
11 Bonnet Gasket COMPRESSED ASBESTOS FIBRE/ SOFT STEEL
1
12 Bonnet Stud & Nut ASTM A 193 GR.B7
ASTM A 194 GR.2H
-
13 Eye Bolt & Nut ASTM A 193 GR.B7
ASTM A 194 GR.2H
2 Set
14 Hand Wheel CAST IRON
1
15 Hand Wheel Nut CARBON STEEL
1

Size
A
B
ø C
ø D
ø M
N
PCD
J
25
161
18
68
115
14
4
85
125
40
199
20
88
150
18
4
110
175
50
231
20
102
165
18
4
125
175
65
291
22
122
185
18
8
145
225
80
309
24
138
200
18
8
160
225
100
351
26
162
235
22
8
190
250
125
401
28
188
270
26
8
220
250
150
481
30
218
300
26
8
260
312
200
599
34
285
375
30
12
320
375
250
729
42
345
450
33
12
385
500

Note : Due to constant upgradation designs & dimensions are subject to change wihtout notice.
