Technical Data
Manufacturing STD:	BS 5352
Testing & Inspection STD:	API 598
Socket weld & Threaded to:	As per ANSI B 16.11/ ANSI B 1.20.1
Flanged to:	ANSI B 16.50
Fnaned to Flange Distance:	ANSI B 16.10

�

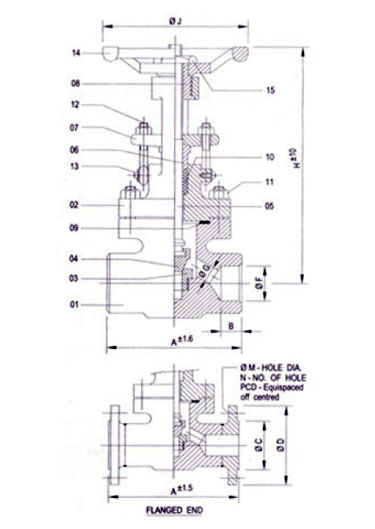

No.	Description	Material	Qty.
01	Body	Forge Steel ASTM A 105	1
02	Bonnet	Forge Steel ASTM A 105	1
04	Seat ring	AISI 410 ( 13% CR.)	1
	Disc	AISI 410 ( 13% CR.)
05	Stem	AISI 410 ( 13% CR.)	2
06	Gland Bush	AISI 410 ( 13% CR.)	1
07	Gland Flange	ASTM A 105	1
08	Yoke Sleeve	NI - Resist	1
09	Bonnet Gasket	Spiral wound s.s. 304 with CAF	1
10	Gland packing	S.S. Metal wire braided Asbestos	-
11	Bonnet Stud & Nut	ASTM A 193 Gr. B7/ ASTM A 194 Gr. 2H	4 Set
12	Eye Bolt & Nut	Forged C.S.	2 Set
13	Screw & Washer	M. S. Galvanised	2 Set
14	Hand Wheel	Cast Iron / C.S.	1
15	Hand Wheel Nut	Carbon Steel	1

� �

Screwed / Socket Weld Class - 800
Size	A	B	ø E	ø F	øG	H	øJ
15	86	10	13	22.0	9.5	150	78
20	91	13	13	27.5	12.7	165	78
25	104	13	15	34.0	17.5	185	100
40	127	15	25	48.6	28.6	239	142
50	143	16	25	61.0	36.5	248	142

�

Class - 150
Size	A	ø C	ø D	ø M	N	PCD
15	107	35	89	16	4	60.4
20	119	43	98	16	4	70.0
25	126	51	108	16	4	79.0
40	164	73	127	16	4	98.5
50	204	92	152	19	4	120.6
