Technical Data
Manufacturing STD:	API 602
Testing & Inspection STD:	API 598
Socket weld & Threaded to:	As per ANSI B 16.10/ ANSI B 1.20.1
Flanged to:	ANSI B 16.34
Fnaned to Flange Distance:	ANSI B 16.10

�

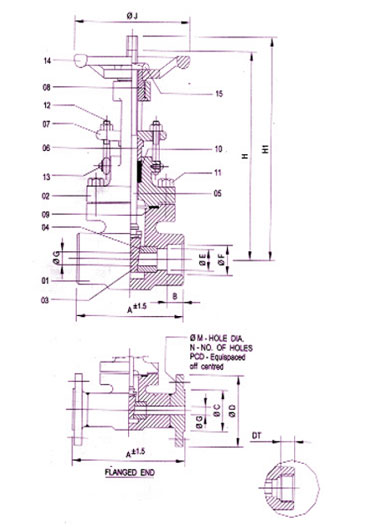

No.	Description	Material	Qty.
01	Body	Forge Steel ASTM A 105	1
02	Bonnet	Forge Steel ASTM A 105	1
03	Wedge	AISI 410 ( 13% CR.)	1
04	Seat ring	AISI 410 ( 13% CR.)	1
05	Stem	AISI 410 ( 13% CR.)	2
06	Gland Bush	AISI 410 ( 13% CR.)	1
07	Gland Flange	ASTM A 105	1
08	Yoke Sleeve	NI - Resist	1
09	Bonnet Gasket	Spiral wound s.s. 304 with CAF	1
10	Gland packing	S.S. Metal wire braided Asbestos	-
11	Bonnet Stud & Nut	ASTM A 193 Gr. B7/ ASTM A 194 Gr. 2H	4 Set
12	Eye Bolt & Nut	Forged C.S.	2 Set
13	Screw & Washer	M. S. Galvanised	2 Set
14	Hand Wheel	Cast Iron / C.S.	1
15	Hand Wheel Nut	Carbon Steel	1

� �

Screwed / Socket Weld Class - 800
Size	A	B	ø E	ø F	øG	H	H1	DT	øJ
15	86	10	13	22.0	9.5	154	174	13	94
20	91	13	15	27.5	14.0	160	185	13	94
25	104	13	22	34.0	18.0	168	198	15	98
40	127	15	36	48.6	32.0	231	274	25	142
50	143	16	45	61.0	42.0	242	287	25	142

�

Class - 150
Size	A	ø C	ø D	øG	ø M	N	PCD
15	107	35	89	11	16	4	60.4
20	119	43	98	13	16	4	70.0
25	126	51	108	14	16	4	79.0
40	164	73	127	14	16	4	98.5
50	177	92	152	16	19	4	120.6
