   Valves / Strainer

Pot Type Strainer Y Type Strainer

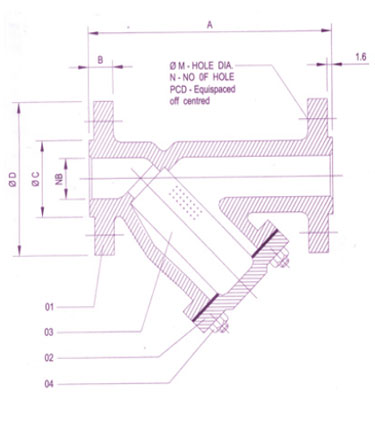

Y Type Strainer
�

Technical Data
Face to Face: as per DIN ND - 40 Type/ANSI B 16.10
Shell wall thickness:
 ANSI B 16.34
End connections: Flanged as per ANSI B 16.5
� �
�
No.
Description
Material
Qyt.
01
Body
 ASTM A 216 Gr. WCB
1
02
Bonnet
 ASTM A 216 Gr. WCB
1
03
Screen
 S.S. 304 / S.S. 316 / G.M.
1
04
Cover Stud & Nut
 ASTM A 193 GR. B7
ASTM A 194 GR. 2H
-


Service Rating
40 Kg/ cm2
400° C
580 PSIG
Hydraulic Test Pressure
Body
80 Kg / cm2
1160 PSIG
Class - 150
Size
NB
A
B
ø C
ø D
ø M
N
PCD
25
 25
127
11.0
51
108.0
16
4
79.0
40
 38
165
14.0
73
127.0
16
4
98.5
50
 51
203
16.0
92
152.0
19
4
120.5
65
 64
216
17.5
105
178.0
19
4
140.0
80
 76
241
19.0
127
190.5
19
4
152.4
100
 102
292
24.0
157
229.0
19
8
190.5
125
126
356
24.0
186
254.0
22
8
216.0
150
 152
406
25.0
216
279.0
22
8
241.0
200
 203
495
28.5
270
343.0
22
8
298.4
250
 254
622
30.0
324
406.0
25
12
362.0

Class - 300
Size
ND
A
B
ø C
ø D
ø M
N
PCD
25
 25
160
18
68
115
14
4
85
40
 38
200
18
88
150
18
4
110
50
 51
230
20
102
165
18
4
125
65
 64
290
22
122
185
18
8
145
80
 76
310
24
138
200
18
8
160
100
 102
350
24
162
235
23
8
190
125
126
400
26
180
270
27
8
220
150
 152
480
28
218
300
27
8
250
200
 203
600
35
285
375
30
12
320
250
 254
730
38
345
450
30
12
385

Note : Due to constant upgradation designs & dimensions are subject to change wihtout notice.
