   Valves / Check Valves

Lift Check Valves Swing Check Valves Wafter Check Valves Dual Check valve

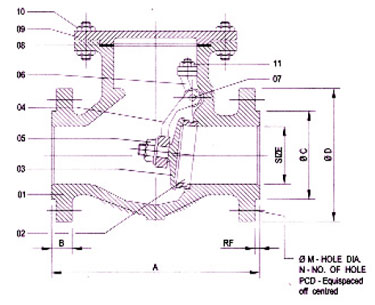

Swing Check Valves
�


Class - 150
Size
A
B
ø C
ø D
ø M
N
PCD
40
166
17.5
73
127.0
16
4
98.5
50
202
19.0
92
152.0
19
4
120.5
65
217
22.3
105
178.0
19
4
140.0
80
242
24.0
127
190.5
19
4
152.4
100
293
24.0
157
229.5
19
8
190.5
150
357
25.0
216
279.0
22
8
241.0
200
494
28.5
270
343.0
22
8
298.0
250
623
30.0
324
406.0
25
12
362.0
300
698
32.0
381
483.0
25
12
432.0
350
788
35.0
413
533.0
29
12
476.2
400
863
36.5
470
597.0
29
16
539.8
� �
Hydraulic Test Pressure
Service Rating
Class
Body
Seat
Pressure
Temp.
150
425 PSIG
300 PSIG
150 PSIG
500° F
300
1100 PSIG
750 PSIG
300 PSIG
850° F
600
2175 PSIG
1500 PSIG
600 PSIG
850° F
Air Test - Seat 80 PSIG ± PSIG
��
Class
RF
150
1.6 MM
300
1.6 MM
600
6.35 MM

Technical Data
Manufacturing STD: ANSI B 16.34 / BS 1868
Testing & Inspection STD:
 API 598 / BS 5146
Face to Face: As per ANSI B 16.10
Shell wall thickness: ANSI B 16.34
End connections: Flanged as per ANSI B 16.5
�
No. Description Material
Qty.
01 Body ASTM A 216 Gr. WCB/ ASTM A 351 CF8/CF8M
1
02 Seat Ring Carbon Steel with 13% CR
1
03 Disc ASTM A 216 Gr. WCB with 13% CR
1
04 Hinge ASTM A 216 Gr. WCB
1
05 Disc Nut ASTM A 216 Gr. B7
ASTM A 216 Gr. 2H
1
06 Bracket ASTM A 216 Gr. WCB
07
 Hinge pin S.S. AISI 410
1
08
 Gasket Compressed Asbestos Fibre
1
09
 Cover ASTM A 216 Gr. WCB
10
 Cover Stud &
Nut		 ASTM A 193 Gr. B7 ASTM A 194 Gr. 2H
-
11
 Bracket Stud / Nut ASTM A 216 Gr. WCB 1

Class 300
Size
A
B
ø C
ø D
ø M
N
PCD
40
 242 20.5
73
155.5
22
4
114.0
50
268
 22.0
92
165.0
19
4
127.0
65
291
 25.0
105
190.5
22
8
149.0
80
318
 28.5
127
209.5
22
8
168.0
100
357
 32.0
157
254.0
22
8
200.0
150
445
 36.5
216
317.5
22
12
270.0
200
532
 41.0
270
381.0
29
12
330.0
250
621
 47.5
324
444.5
29
16
387.0
300
710
 51.0
381
521.0
32
16
451.0
350
839
 54.0
413
584.0
32
20
514.0
400
864
 57.0
470
648.0
35
20
571.0
�
Class - 600
Size
A
B
ø C
ø D
ø M
N
PCD
40
 242 28.7
73
156.0
22
4
114.0
50
291
 31.7
92
165.0
19
8
127.0
65
329
34.8
105
191.0
11
8
149.0
80
355
38.1
127
210.0
11
8
168.0
100
431
44.5
157
273.0
25
8
216.0
150
558
54.1
216
356.0
29
12
292.0
200
659
62.0
270
519.0
32
12
349.0
250
788
69.8
324
508.0
35
16
432.0
300
839
72.9
381
559.0
35
20
489.0

Note : Due to constant upgradation designs & dimensions are subject to change wihtout notice.
