Valves / Cast Iron Valves

Cast Iron
Check Valves

Cast Iron
Gate Valves

Cast Iron
Globe Valves

Cast Iron Single
Airrelease Valves

Cast Iron Large Airrelease Valves

Cast Iron Dynamic
Air Valves

Cast Iron Gate Valves

Technical Data
DESIGN STANDARD	IS:780, IS:14846, IS:2906, BS:5150, BS:5163, BS:1735, BS:1218, BS:3498, BS:5151, AWWA.C 500, DIN 3352
CONSTRUCTION:	INSIDE SCREW NONRISING SPINDLE, OUTSIDE SCREW RISING SPINDLE.
TYPE OF WEDGE / GATE	SOLID & TAPER, FLEXIBLE & TAPER, DOUBLE DISC(PARALLE/TAPER).
SIZE / APPLICATION	25 MM TO 2000 MM./ WATER. SEWAGW, GAS, AIR, OIL, CHEMICAL.
PRESSURE RATING	PN 0.05 TO PN 1.6 MPa, PN 4 TO PN 16 BAR, CLASS - 125#.
OPERATION	MANUAL, ELECTRICAL, PNEUMATIC, HYDRAULIC.
TRIM MATERIAL	DIFFERENT MATERIAL OF CONSTRUCTION TO SUIT REQUIRMENTS.

�

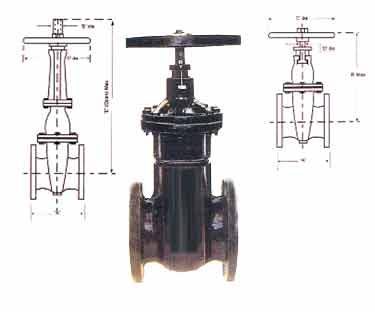

SIZE	RATING PN (MPa)	A	B	C	D	E	APPX WT. IN KG.
SIZE	RATING PN (MPa)	A	B	C	D	E	NRS	RS
25	1.6	141	280	160	14	400	8	9
32	1.6	151	300	160	16	440	12	13
40	1.6	170	340	180	20	480	18	19
50	1.0 1.6	216 216	365 390	225 280	24 26	510 510	22 27	24 29
65	1.0 1.6	231 231	390 420	225 280	24 26	560 560	24 30	27 33
80	1.0 1.6	231 231	425 460	225 280	24 26	610 610	32 39	42 49
100	1.0 1.6	256 256	470 520	320 360	28 30	720 720	48 51	58 61
125	1.0 1.6	267 267	540 575	320 360	28 30	875 875	60 73	70 84
150	1.0 1.6	281 281	595 625	320 360	28 32	950 950	75 91	85 90
200	1.0 1.6	319 319	725 765	360 450	32 38	1200 1200	126 160	138 172
250	1.0 1.6	356 356	835 875	400 640	36 44	1440 1440	183 250	220 290
300	1.0 1.6	381 381	910 965	400 640	36 44	1675 1675	248 325	300 360
350	0.6 1.0 1.6	436 551 691	1020 1030 940	500 500 640	40 40 44	1900 1900 1900	350 420 520	390 455 560
400	0.6 1.0 1.6	471 601 750	1110 1100 1070	640 640 720	44 44 50	2070 2070 2070	470 640 640	514 685 685
450	0.6 1.0 1.6	501 651 821	1210 1200 1170	640 720 800	44 50 55	2250 2250 2250	600 660 700	646 700 746
500	0.6 1.0 1.6	526 701 881	1300 1340 1260	720 720 800	50 50 55	2430 2430 2430	700 824 950	750 880 1000
All dimension are in mm

SIZE	RATING PN (MPa)	A	B	C	D	E	APPX WT. IN KG.
SIZE	RATING PN (MPa)	A	B	C	D	E	NRS	RS
600	0.6 1.0 1.6	556 801 1001	1500 1500 1480	720 720 800	50 50 60	2850 2850 2850	1000 1200 1500	1110 1310 1610
700	0.4 0.6 1.0	636 901 1131	1650 1670 1620	800 800 800	55 55 65	3250 3250 3250	1500 1600 1900	1650 1750 2070
750	0.4 0.6 1.0	686 951 1201	1760 1780 1720	800 800 900	55 55 70	3500 3500 3500	1900 2000 2250	2070 2170 2420
800	0.4 0.6 1.0	701 1001 1251	1850 1930 1820	800 800 900	60 60 70	3750 3750 3750	2100 2500 2800	2285 2685 2985
900	0.4 0.6 1.0	741 1101 1381	2100 2080 2040	800 800 900	65 65 80	4150 4150 4150	2700 3000 3700	2940 3240 3940
1000	0.4 0.6 1.0	761 1201 1501	2250 2180 2200	900 900 900	70 70 80	4450 4450 4450	3500 3850 4200	3750 4100 4450
1100	0.4 0.6 1.0	781 1301 1651	2350 2400 2400	900 900 1000	70 80 90	4900 4900 4900	4050 4400 5000	4300 4650 5250
1200	0.4 0.6 1.0	811 1401 1801	2590 2520 2580	900 1000 1000	75 85 90	5260 5260 5260	4850 5400 6200	5100 5650 6450
1300	0.15	701	3000	1000	75	5700	4900	5150
1400	0.15	711	3200	1000	75	6000	5600	5900
1500	0.15	761	3420	1000	80	6500	6300	6600
1600	0.15	791	3650	1000	90	6850	6800	7100
1700	0.15	821	3900	1000	95	7220	7600	7900
1750	0.15	851	4000	1000	95	7400	8000	8300
1800	0.15	871	4100	1000	100	7600	8300	8650
1900	0.15	931	4300	1000	115	8000	9200	9550
2000	0.15	1001	4560	1000	125	8500	10500	10850
All dimension are in mm

Note : Due to constant upgradation designs & dimensions are subject to change wihtout notice.
